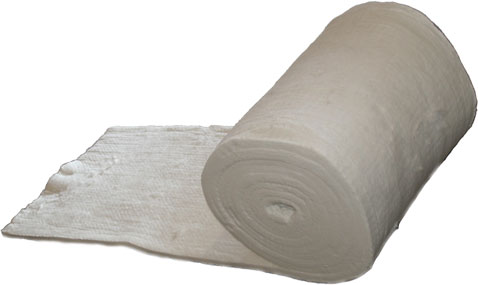

Ceramic Fiber Blankets
 |
 |
 |
| |
|
|
|
Ceramic Fiber Blankets |
| 2300 DEGREE |
1" x 24" x 300" |
6# DENSITY |
16 ROLLS PER PALLET |
| 2300 DEGREE |
1" x 24" x 300" |
8# DENSITY |
16 ROLLS PER PALLET |
| 2300 DEGREE |
2" x 24" x 150" |
8# DENSITY |
16 ROLLS PER PALLET |
| 2300 DEGREE |
2" x 48" x 150" |
8# DENSITY |
8 ROLLS PER PALLET |
| 2600 DEGREE |
1" x 24" x 300" |
6# DENSITY |
16 ROLLS PER PALLET |
| 2600 DEGREE |
1" x 24" x 300" |
8# DENSITY |
16 ROLLS PER PALLET |
| 2600 DEGREE |
2" x 24" x 150" |
8# DENSITY |
20 ROLLS PER PALLET |
| |
CERAMIC FIBER BLANKET |
| |
|
1430 HTZ (2600° F) |
1260 HP (2300° F) |
| COLOR |
|
WHITE |
WHITE |
| DENSITY ( KG/M3 ) |
|
64 - 128 ( 4, 6, 8, LB/ FT3 ) |
| |
|
|
|
|
TENSILE STRENGTH ( K/G/M3 ) |
| BLANKET DENSITY 64KG/M3 ( 4LB/FT3 ) |
|
35 |
35 |
| 96KG/M3 ( 6LB/FT3 ) |
|
75 |
75 |
| 128KG/M3 ( 8LB/FT3 ) |
|
100 |
100 |
| |
|
|
|
|
PERMANENT LINEAR CHANGE (ASTM C-210) % @ |
| |
|
AFTER 24 HOURS |
|
| 1000° C ( 1830° F ) |
|
|
1.5 |
N/A |
| 1100° C ( 2000° F ) |
|
|
2 |
N/A |
| 1200° C ( 2200° F ) |
|
|
3 |
1 |
| 1300° C ( 2370° F ) |
|
|
N/A |
2 |
| 1400° C ( 2550° F ) |
|
|
N/A |
3 |
| |
|
|
|
|
THERMAL CONDUCTIVITY |
| |
64 KG/M3 ( 4LB) |
96 KG/M3 ( 6 LB ) |
128 KG/M3 ( 8 LB ) |
| 400° C ( 750° F ) W - m.K |
0.12 |
0.11 |
0.1 |
| 600° C ( 1100° F ) |
0.2 |
0.16 |
0.15 |
| 800° C ( 1470° F ) |
0.3 |
0.22 |
0.2 |
| 1000° C ( 1830° F ) |
0.4 |
0.3 |
0.26 |
| |
|
|
|
CHEMICAL COMPOSITION % |
| AL203 |
|
|
47 |
35 |
| S102 |
|
|
52 |
49 |
| ZR02 |
|
|
N/A |
15 |
| FE203 |
|
|
0.2 |
0.2 |
| NA20, K20, CAD, MGO |
|
|
0.2 |
0.2 |
|

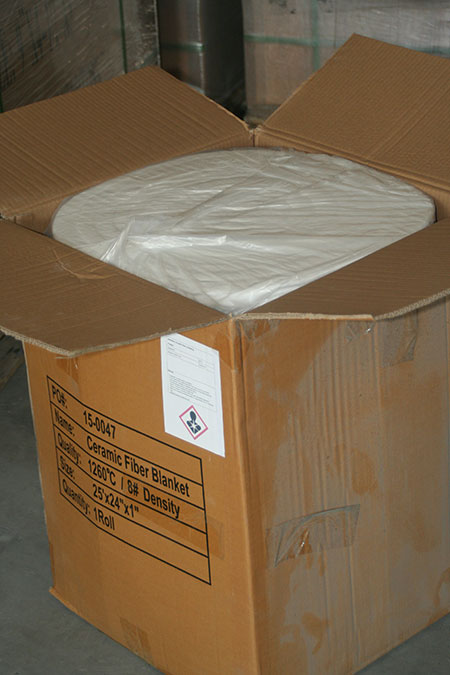

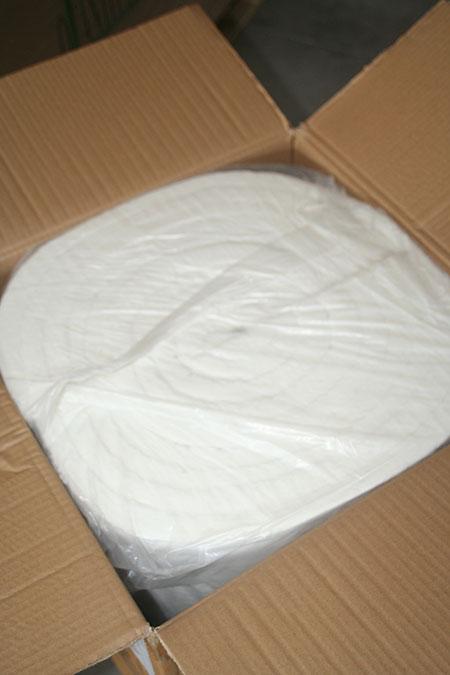

* Ceramic Fiber Blanket packaged 50 square/feet rolls per carton. *
* Please email or call for current stock levels and pricing. *
* SDS sheets available upon request. * |
|
|
|
